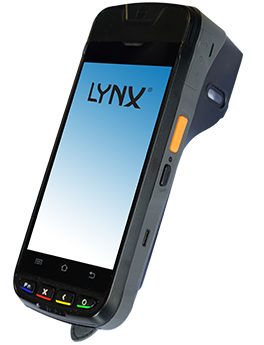

PDA POS L1500x
In order to meet the needs of e-commerce,financial insurance,commercial retail,O2O applications,Logistics Express and other industry applications,Lynx has developed the Smart POS Payment Terminal L 1500x.
Lynx Smart POS Payment Terminal L 1500x combines the functions of financial POS and big screen PDA,which maintains a high degree of integration and portability.
It can be used to provide powerful calculation,safe payment,fast data collection and convenient information access.
Lynx Smart POS Payment Terminal L 1500x combines the functions of financial POS and big screen PDA,which maintains a high degree of integration and portability.
It can be used to provide powerful calculation,safe payment,fast data collection and convenient information access.
Multiple payment solutions
- Traditional MSR , Chip card , NFC
- 2D payment
- Membership rewards point
Enterprise security
- Custom OS with various security enhancements that change Android from a consumer OS to an enterprise platform
- Supports 2 PSAM slots , meeting the most stringent requirement of financial institution and government agencies.
- EMV L1 , L2 certified
- EMV contactless
- PCI certified
Voice and data connection
- 7 band WAN radio with high speed data access
- 802.11b/g/n WiFi
Advance capacitive screen
- 5” HD (720 x 1280)
- Industrial grade sensitivity, works with gloves and wet fingers
Powerful data collection
- Optional 1D or 2D scan engine
- 5MP camera
- GPS location
Thermal printer
- 2” thermal printer
- 30mm paper roll
- 40mm paper roll (future option)
|
Physical Characteristics |
Dimensions |
184mm x 79 mm x 29 mm (max 51.5mm) |
|
Weight |
490g |
|
|
Buttons |

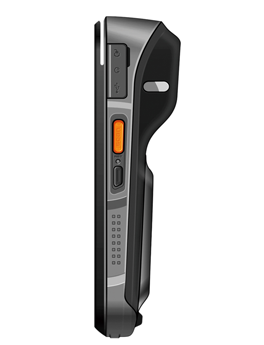

Front : User define button x 1 , Cancel button x 1 , Confirm button x 1 , Clear button x 1 Side : SCAN button x 2, The volume switch button, ON / OFF button |
|
|
Input |
Chinese/ English, and supports handwriting and soft keyboard |
|
|
Performance Characteristics |
O.S. |
Android 4.3 supports multi-language |
|
CPU |
Quad-Core 1.2GHz |
|
|
Display |
5.0 inch TFT-LCD HD (720 x 1280) color screen |
|
|
Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |
|
|
RAM |
1GB |
|
|
ROM |
4GB |
|
|
Barcode Scanner |
1D Laser |
Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded |
|
2D CMOS (Optional) |
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse |
|
|
Radio Communication |
Wi-Fi |
802.11 b/g/n wireless communication |
|
Bluetooth |
Bluetooth 4.0 |
|
|
WCDMA |
GSM:850/900/1800/1900 MHz |
|
|
WCDMA+EVDO(optional) |
GSM:850/900/1800/1900 MHz CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A Supports BC0 (800MHz band), BC1 (1900MHz band) |
|
|
Payment |
Certification |
EMV L1 , L2 , PCI certified |
|
Magcard |
Conforms to the ISO7811, and supports triple track (tracks 1/2/3), bi-directional |
|
|
Chip Card |
Supports ISO7816 standard |
|
|
Contactless Cards(RFID) |
Supports 14443A / 14443B approved; Supports 10MHz~20MHz frequency, and reading access time less than 300 milliseconds |
|
|
PSAM |
Conforms to ISO7816 standard x 2 |
|
|
Printer |
58mm printing paper, 203dpi / 8dot / mm; Printing speed: 50~70mm/s, and supports barcode printing 30mm paper roll |
|
|
Others |
Prompting mode |
Green, red and blue LED, vibration, speaker |
|
Camera |
5MP camera with LED flash and auto-focus function |
|
|
GPS |
GPS,Supports A-GPS,GNSS |
|
|
Power |
Main Battery |
Rechargeable 7.4V, 2800 mAh lithium polymer battery pack (Typical Operation time ≥8 hours） |
|
RTC Battery |
Real time clock battery |
|
|
User Environment |
Operating Temperature |
-10℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 60℃ |
|
|
Humidity |
5% ~ 95% (non condensing) |
|
|
Drop Durability |
1.2m |
|
|
Peripherals and Accessories |
Expansion |
Micro SD/TF x 1(a maximum of 32 GB), SIM x 1, SAM x 2 |
|
Interfaces |
Mini USB x 1, POGO PIN x 1, 3.5mm Audio Jack x 1 |
|
|
Regulatory |
Product Certification |
CCC, CE |
|
Warranty |
12 months (except the accessories) |
