Physical Characteristics
|
Dimentions
|
155 mm x 70 mm x 24 mm
|
|
Weight
|
280g
|
|
Keyboard
|
1. Number/Alphabetic keys (including SCAN, 1aA, Backspace, Enter and Fn), LED backlight
2. Side SCAN*2 and TALK keypad*1
3. The volume switch
4. ON / OFF Key
|
|
Input
|
Chinese/ English, and supports handwriting and soft keyboard
|
|
Performance Characteristics
|
O.S.
|
Android 4.1, supports multi-language
|
|
CPU
|
Quad-Core 1.2GHz
|
|
Display
|
4.0 inch TFT-LCD WVGA(800*480) color touch screen
|
|
Panel
|
Capacitive touch screen, supports multi-touch
|
|
RAM
|
1GB
|
|
ROM
|
8GB
|
|
Barcode Scanner
|
1D Laser
|
Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded
|
|
2D CMOS
(Optional)
|
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
|
|
Radio Communication
|
Wi-Fi
|
802.11 b/g/n wireless communication, supports seamless roaming
|
|
Bluetooth
|
Bluetooth 4.0
|
|
WCDMA
|
Frequency Range: GSM:850/900/1800/1900 MHz
UMTS/HSPA+: 850/900/1900/2100 MHz
|
|
HSDPA Cat.8 / HSUPA Cat.6 : DL 7.2 Mbps, UL 5.7 Mbps
EDGE Class 12 : DL 237 kbps, UL: 237 kbps
GPRS Class 12 : DL 85.6 kbps, UL: 85.6 kbps
|
|
CDMA 2000
(Optional)
|
Frequency Range: CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)
|
|
CDMA2000 1X: UL/DL 153.6 kbps
CDMA2000 1X/EVDO Rev.0: UL 153.6 kbps DL 2.4 Mbps
CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps
|
|
Options
|
Prompting mode
|
Green, red and blue LED, vibration, speaker
|
|
Camera
|
5.0 mega pixels with flash and automatic focus; Supports video recording
|
|
GPS
|
GPS,Supports A-GPS
|
|
RFID
|
Supports 13.56Mhz, ISO14443A/B and ISO15693 standard, Mifare, Felica
|
|
NFC
|
Supports NFC
|
|
Sensor
|
Supports distance sensor, light sensor and acceleration sensor
|
|
Power
|
Main Battery
|
Rechargeable 3.8 V 3800 mAh lithium battery pack（Operation time ≥8 hours）
|
|
RTC Battery
|
Supports to keep clock at real time
|
|
User Environment
|
Operating Temperature
|
-10℃ ~ 50℃
|
|
Storage Temperature
|
-20℃ ~ 70℃
|
|
Humidity
|
5% ~ 95% (non condensing)
|
|
Sealing
|
IP65
|
|
Drop Durability
|
1.5m
|
|
Peripherals and Accessories
|
Expansion
|
Micro SD/TF *1(a maximum of 32 GB), SIM*1, SAM*1
|
|
Interfaces
|
Mini USB*1, POGO PIN*1, 3.5mm Audio Jack*1
|
|
Single slot dock
(Optional)
|
Supports to charge one unit of device and one spare battery simultaneously,
Input:AC 100V~240V,1A Max,50/60Hz
Output:DC 5.5V,2.6A
Two indicator Led:Power and Status
|
|
Regulatory
|
Product Certification
|
CCC, CE
|
|
Warranty
|
12 months (except the accessories)
|

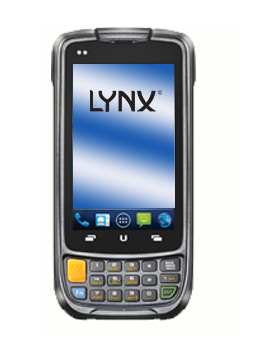

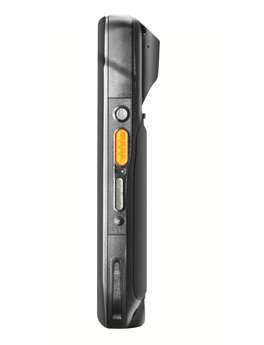

Lynx Enterprise Security Intelligent Terminal L1200 uses Android 4.0 system and supports one-dimensional and two-dimensional bar code scanning.As for industrial design,it has reached IP67,and it’s professional for enterprise data security.
Lynx Enterprise Security Intelligent Terminal L1200 uses Android 4.0 system and supports one-dimensional and two-dimensional bar code scanning.As for industrial design,it has reached IP67,and it’s professional for enterprise data security.
