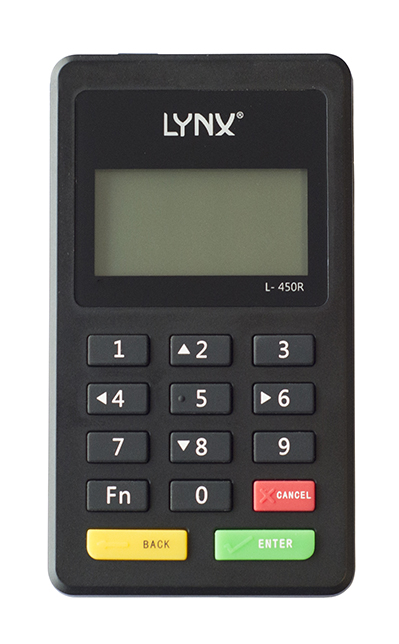

Mobile POS Lynx L450-R

New Generation Mobile POS

Business travel: provide comprehensive electronic payment solutions for both airlines and air ticket agencies to help increasing sales and improve financial management efficiency.

Application Scenarios

  • Retail chain: help to develop new sales channels rapidly, enhance efficiency of finance management and reduce operating costs.
  • Insurance: provide a comprehensive electronic payment solution to help insurance companies track information about transactions and funds in different places.
  • Wholesalers and individuals: improve collection efficiency and ensure an effective collect on delivery.
  • Fund transfer: multiple accounts are provided for fund transfer/remittance (B2B).

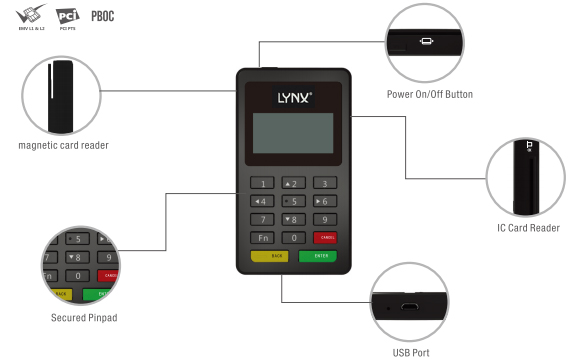

  • Compatible with iPhone, Android, PAD and other intelligent terminals with standard earphone port;
  • Supporting USB-based communication to facilitate the acquiring business in PC environment;
  • Built-in encrypted security chip and physical password keyboard to effectively protect clients’ information including personal payment password and card number;
  • Small, compact and portable, operable in various mobile situations.
Processor A7, Quad-Core   1.1GHz or above
Memory

1GB RAM, 8GB FLASH, Ext. TF(micro   SD) card
○ 2GB RAM, 16GB FLASH

Communication Micro USB,Blue tooth
Carder Reader magnetic card reader
IC card reader
RFID card reader
Display 4-line dot matrix, backlit,
resolution: 128 x 64
Keyboard 10 numeric keys, 4 function keys
Power USB power / Li-ion battery
Certification EMV L1&L2 certified

PBOC 3.0 L1&L2

QPBOC L1&L2

PCI PTS4.0(SRED)

Dimension 101mm*56*mm*12.5mm(L×W×H)
Weight 85g
Security RSA2048/DES/3DES;DUKPT key management
